$3,551.00 NZD

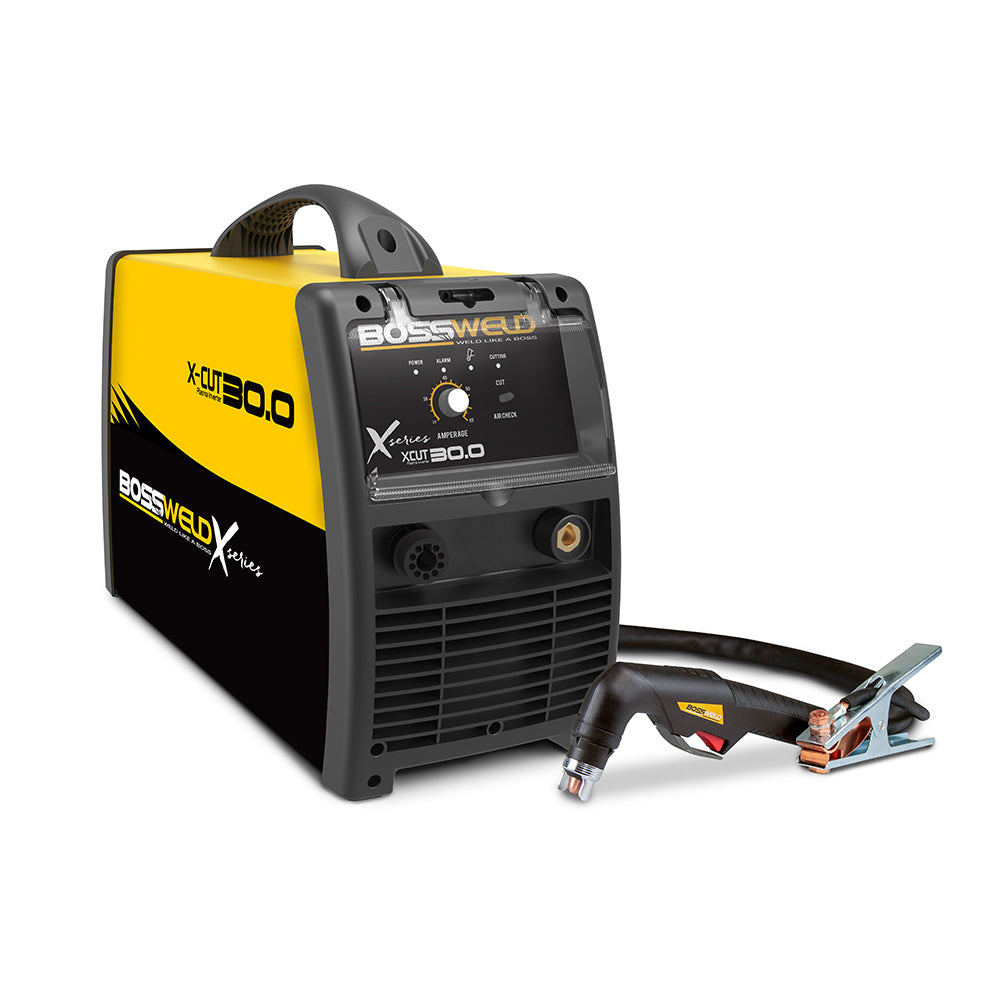

Bossweld X-Series X-CUT 30 Inverter Plasma Cutter Machine, 65 Amp, 15 Amp plug
695065

The Bossweld X-Cut 30.0 is a lightweight inverter based cutting machine that utilises the latest IGBT technology. Fitted with a 6 metre PT60 plasma cutting
torch, it is ideal for all cutting applications up to 30mm.
65 Amp output
Highly efficient cutting
Impressive cutting ability
Lightweight and portable
Pilot arc start
30mm clean cut
Air check switch
Built in air regulator
6 meter plasma torch
Central torch connector
IGBT inverter technology

Standard inclusions:
X-CUT 30.0 Inverter Plasma Cutter
6Mt Bossweld Plasma Torch
3Mt Earth clamp
Carry Strap
Operator Manual

Specifications:
Input power: 3 phase 415V
Output current range: 20-65A
Open Circuit voltage: 400V
I Max: 18A
I eff: 17.1A
Duty cycle @ 40? C: 90% @ 65A, 100% @ 61A
Insulation Class: IP21/ H
Air required: 7-8CFM, 200 LPM
Thermal overload: YES
Minimum generator: 15
Dimension (mm): 590 x 433 x 240
Weight (Kg): 24
